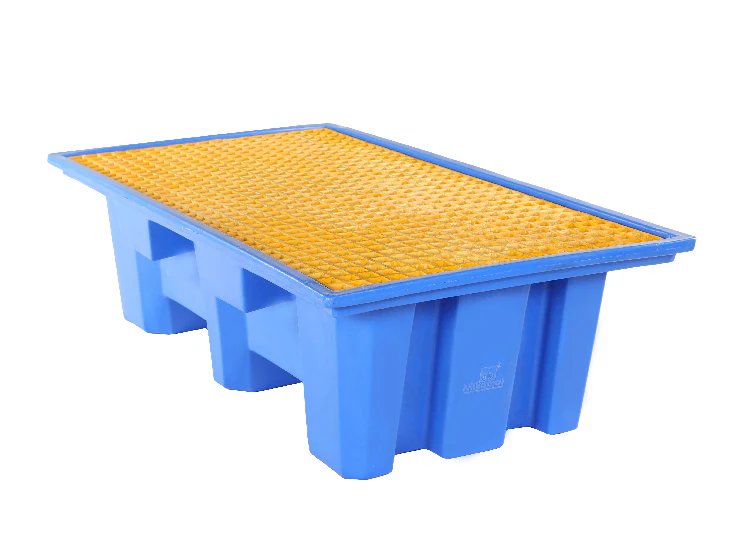

Spill Pallet with Lid
Capacity:Â 50 LTR Approx.
Static Load (UDL):Â 500 KG
Outer Dimension:Â 1050(L) x 650(W) x 175(H) MM Approx.
Nilkamal’s Spill Containment Pallets are an absolute must for food & pharma companies. Spillage can occur anywhere / any time & can contaminate sensitive food & pharma products or clean rooms, causing huge rejections & recalls. Nilkamal’s Spill Containment Pallets are made to international standards and & are an absolute necessity for your pharma or food manufacturing set-up.
| SPILL PALLET MODEL | CAPACITY OF DRUMS / NO. OF DRUMS | SUMP CAPACITY | DIMENSIONÂ (LÂ X WÂ X H) MM | STATIC | DYNAMIC |
| RPF50LSPIL1* | 210 Ltrs / 1 Drum | 50 Ltrs. | 1050 X 650 X 175 | 500 Kg., | NA |
| RPF120L3RSPIL2* | 210 Ltrs / 2 Drums | 120 Ltrs. | 1400 X 800 X 270 | 500 Kg., | 500 Kg., |
| RPF200L3RSPIL2* | 210 Ltrs / 2 Drums | 200 Ltrs. | 1400 X 800 X 420 | 500 Kg., | 500 Kg., |
| RMPCF100L3RSPIL* | 210 Ltrs / 4 Drums | 100 Ltrs. | 1300 X 1300 X 200 | 1000 Kg., | 1000 Kg., |
| RPF240L3RSPIL4* | 210 Ltrs / 4 Drums | 240 Ltrs. | 1400 X 1400 X 270 | 1000 Kg., | 1000 Kg., |
| RMPCF525L3RSPIL** | 210 Ltrs / 4 Drums | 525 Ltrs | 1300 X 1300 X 570 | 2000 Kg. | 1000 Kg., |
* Above spill Containment pallet can be provided with Drain plug/outlet facility on request

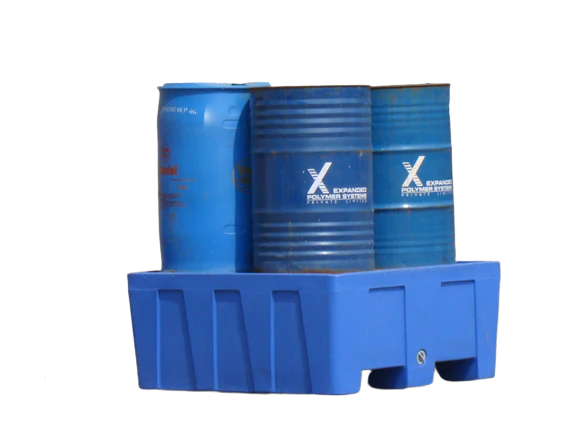

** RMPCF525L3RSPIL-4 has an inbuilt drain plug/outlet for draining our spilled oil/chemical stored inside the sump
* FRP GRATINGÂ Price increase due to input cost increased
